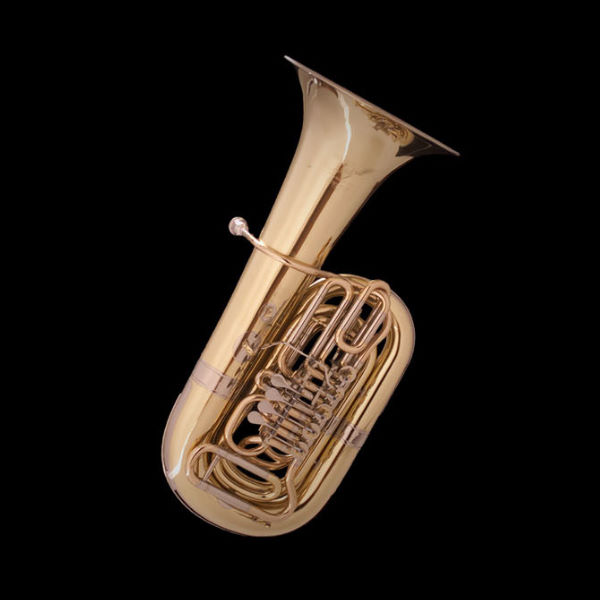

Contrabass tuba

Also: piston valve. Patented in Paris in 1838 by François Périnet as a further development of the piston valve that was first presented by Heinrich Stölzel in Berlin in 1814. Along with the rotary valve, this is the most widely used brass instrument valve today.

This valve was developed in Vienna by Joseph Riedl in 1835 and is now the most commonly used valve on brass instruments along with the Périnet or piston valve.

The modern tuba is the result of numerous attempts to make a bass instrument that was capable not only of producing a sound that carried well but also enabled satisfactory intonation. In 1835 Johann Moritz and the trombonist Wilhelm Wieprecht (1802-1872) were granted a Prussian patent in Berlin for the bass tuba. This instrument was made of brass, keyed in F and had five piston valves ("Berlin valves").

The 1st and 2nd valves lowered the fundamental note by a whole tone and a semitone respectively in relation to the key of F; the 3rd valve lowered the fundamental pitch by a fourth, from F to C. The 4th and 5th valves lowered the pitch from C by a whole tone and a semitone (wide half step, wide whole step) respectively. The relatively narrow bore meant that the bass notes were not particularly loud or powerful.

In order to achieve greater volume in the bass several instrument makers looked to Wieprecht's invention for inspiration and started making larger instruments with wider bore profiles. In 1845 the Bohemian instrument maker Vaclav Frantisek Czerveny (1819-1896) made a contrabass tuba in C and F in the town of Hradec Králové. He called the instrument the contrabass and subcontrabass and it found a niche principally in wind band music.

Richard Wagner (1813-1883) was the first composer to introduce the contrabass tuba into the opera orchestra, which he did in his Ring of the Nibelung. Anton Bruckner (1824-1896) called for it in his 7th, 8th and 9th symphonies, Richard Strauss (1864-1949) in his Elektra.

In 1883 Czerveny developed an instrument with a particularly wide bore of around 21 mm. This was the famous "Kaiser bass". The instrument was pitched variously in F, Eb, C and Bb, the shape was either elliptical, helicon-shaped or tuba-shaped, the sound mellow and rich.

At the same time contrabass tubas were also known in Italy; there they were made by Pelliti of Milan and were called pellitones.

Tuba in Bb, Cerveny & Sons, Hradec Králové, Czechia, ca. 1910 (Musikinstrumentenmuseum Schloss Kremsegg, Austria, Streitwieser collection)

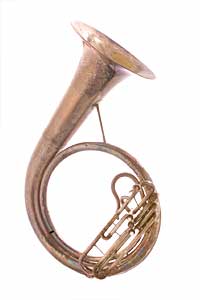

Bass helicon

In the USA the instrument maker Conn made the first sousaphone in 1908, an instrument invented by the composer John Philip Sousa primarily for outdoor use. It had a wide bore and was keyed either in Eb or Bb.

The development of modern bass and contrabass tubas tends toward a widening of the bore.

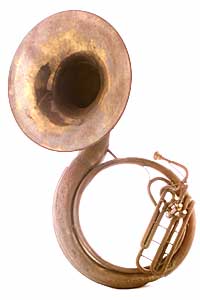

Bass sousaphone

Music for the bass and contrabass tubas is generally non-transposing and written in bass clef. The instrument is pitched in the contrabass register.

In wind band scores notation for the contrabass tuba in Bb is subject to national variations.

In Germany, Italy and England the notation is non-transposing in bass clef.

In France, Belgium and the Netherlands it is transposing, with no accidentals, in bass clef (sounds a major second lower than written):

In Switzerland transposing, in treble clef, no accidentals (sounds two octaves and a major second lower than written):

Range of the Contrabass tuba: A0 - B3

Lower register A0 - Bb1 Middle register B1 - Bb2 Upper register B2 - B3

Pedal tones (1st naturals) speak well on all conical instruments, although on large instruments they require an enormous amount of effort on the part of the player. Because of the huge demands made on the breathing, only the fundamental (1st natural, pedal tone Bb0) can be played on the contrabass tuba in Bb, and can be lowered by two steps (Ab0) at most. As a result, a maximum of three pedal notes is available, but these are very difficult to produce and are consequently hardly ever asked for.

Notes in the natural harmonic series can be played up to the 8th natural by means of overblowing. The instrument's range therefore consists of the following natural harmonic series:

• Natural harmonic series on Bb0: from 1st-8th natural
• Natural harmonic series on A0: from 1st-8th natural (1st natural [pedal], difficult)
• Natural harmonic series on Ab0: from 1st-8th natural (1st natural [pedal], very difficult)
• Natural harmonic series from G0 down to B below B0: from 2nd to 8th natural

The chromatic scale is playable in its entirety over the whole range, with Bb0 and A0 as pedals; all the other notes in the instrument's compass can be played as naturals 2 and above.

As a rule lower-pitched instruments have a less agile and therefore slower response than higher-pitched instruments. It takes longer for the column of air in the tube to respond: the deeper the note, the longer it needs to build up. This applies more to the contrabass tuba than to any other instrument. Tuba players have to compensate for this late response, which they do by beginning their attack prematurely - they must continually jump the gun, as it were, and remain fractionally ahead of the conductor.

A further difficulty encountered by tuba players is the fact that they sit right at the back of the orchestra amid curtains or surfaces that absorb part of the instrument's sound. Their proximity to the timpani has a similar effect, because some of the tuba's overtones are swallowed by the sound of the timpani.

The contrabass tuba's range is the same as that of the bass tuba, which means that all the pieces commonly performed today could be performed by the bass tuba - a Bb0 can also be played on a bass tuba in F, and the lowest notes are equally hard to produce on both instruments. However, the even greater richness of tone and darker timbre of the contrabass tuba mean that it is preferred for parts at this pitch level. When writing for this instrument, composers and arrangers must pay particular attention to the difficulties of sound production - demands made on breathing, length of phrase, changing mutes.

When it comes to agility, the contrabass tuba is at a distinct disadvantage compared to its "little sister" the bass tuba. Stately and solemn passages are best suited to it. Whatever playing technique he performs the demands made on the contrabass tuba player's breathing are greater than those made on the bass tuba player's. This is due to the wider bore profile.

Can be performed with ease in all pitches. The instrument's size means that only stately and solemn sequences are possible, especially in the region of the great octave and the contraoctave. Only moderately fast scales can be played. Even in the upper register it is very difficult to play fast note sequences.

Possible to a limited extent due to the amount of air required.

Sforzando

Forced, short attack followed by a rapid reduction in tone intensity.

Sforzandissimo

Forced, short attack with continuance of tone intensity.

Fortepiano

Rapid dynamic reduction from forte to piano.

Can be played under certain circumstances but is not called for.

Easily playable but seldom called for.

Trills are possible and can be performed well using the valves. Although the effect they produce is good they are found only rarely in orchestral literature.

Mutes are used to reduce the volume. They also brighten the sound. Sufficient time must be permitted for the insertion of the mute, due to its size.

Legato playing makes great demands on the breathing and for this reason the length of phrases must be chosen with care. Large leaps can be performed very well in legato. The following rule has particular relevance to the contrabass tuba: the bigger the instrument the harder it becomes to perform large leaps. Fast sequences in high registers are difficult to play.

Round, calm, hearty, loud, robust, ponderous, sustaining, soothing, earthy, sonorous, majestic, cavernous, rumbling, unfathomable, grave, weighty, broad, resonant.

In all registers the tone is richer, rounder and darker than the bass tuba and less metallic than the bass and contrabass trombones.

Lower register
A0 - Bb1

The pedal notes sound earthy, rumbling and unfathomable; it is difficult to tell what their exact pitch is. These notes are generally doubled an octave above.

The higher notes in this register (from B0-Bb1) correspond to the 2nd naturals and are very sonorous, hearty, majestic and sustaining. It is the notes within this compass that are used most often.

Middle register
B1 - Bb2

A continuation of the low register (naturals 3 and 4). Below F2 the tone is the typical contrabass tuba sound, above it it sounds like a tuba in F.

Upper register
B2 - Bb3

Very powerful sound which can easily produce an imbalance in the overall sound when played forte. In this register the tone is rather thick and lacks metallic or brilliant properties. The bass tuba is often used for this range.

The contrabass tuba is a contrabass instrument. One of its principal tasks is the doubling of other bass instruments, usually an octave lower. Especially in tutti passages its role is to provide a firm fundamental bass. Pedal tones are only possible piano and are seldom used.

In especially large brass sections, for example with six or eight horns, two tubas are used, either two bass tubas or a bass and a contrabass tuba.

Played in unison the effect produced by a contrabass tuba with its bass counterpart is not particularly interesting. Played in octaves the sound combination is homogeneous and pleasing, although it can be "dangerous" to do this forte because it smothers instruments in the middle register. A good blend is achieved with the Wagner tubas.

Reverberant chord combinations can be produced together with the trumpets, horns and trombones.

The contrabass tuba often provides the bass to the trombone section, either on its own or an octave below the bass trombone or in unison with the contrabass trombone. The contrabass tuba and contrabass trombone are similar in volume, although their timbre differs greatly.

Doubling, also in octaves, of the bass voice (bassoon and contrabassoon).

Very good blend with the double-bass. The contrabass tuba's staccato can be compared to the pizzicato of the double-bass.

The sound of the earth, deep underground, when layers slowly shift and cover each other. Sounds that echo in subterranean caves. This sound cannot detach itself from the earth, it remains earth-bound, is heavy. The sound is inescapable, it is as inexorable as a natural disaster once let loose; when it rests it lies heavy over the earth.

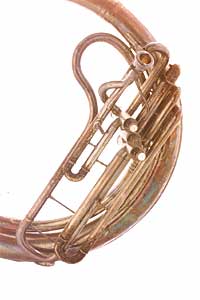

Bass helicon in Bb (detail), C.G. Conn Ltd., Elkhart, Indiana, ca. 1888/89 (Musikinstrumentenmuseum Schloss Kremsegg, Austria, Streitwieser collection)

In orchestral music composers only rarely call specifically for the contrabass tuba. It is usually the musician himself who decides which instrument is best suited for the part.

Instances where the instrument has been called for since the 1880s: Richard Wagner (1813-1883) The Ring of the Nibelung; Anton Bruckner (1824-1896), 7th, 8th, 9th, symphonies; Richard Strauss (1864-1949), Elektra.

The usual wind band repertoire.
