There are three versions of the basic Smart Orchestra Preset: one with all instruments, one with a reduced set of bass instruments, and one without bass instruments. In this way you can employ your orchestra in different settings and together with separate bass sections.
Apart from that, each of the Presets are built up in the same way, and offer the full orchestra with and without mallets, as well as the individual strings, woodwinds, brass, and mallets/percussion sections. Moreover, there also are six full-range solo instruments: violins, flute, oboe, clarinet, trumpet, and horn. All instruments and articulations are activated by keyswitches. In the ensembles, the bass instruments (contrabass, contrabassoon, tubas) were transposed to the lower octave, and the high voices (1st violins and piccolo) to the upper octave, resulting in an effective play range from C1 to C8.
- Preset keyswitches: C0–F#0.
- Type keyswitches: A0–B0 Short notes, Long notes, Pad + solo.
- Solo instrument keyswitches: F1–A#1 Violins, Flute, Oboe, Clarinet, Trumpet, Horn.
The short and long notes Articulations of the three Smart Orchestra Presets are equipped with a percussion section mapped from D6 to C8.

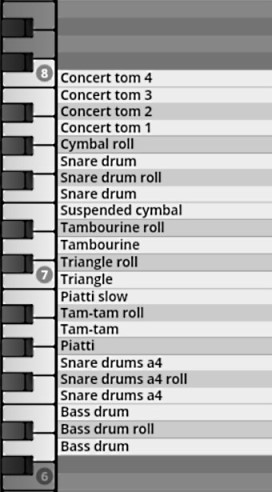

Mapping
- D6, E6: Bass drum, single hits (alternating)
- D#6: Bass drum, roll
- F6, G6: Snare drums a4, single hits
- F#6: Snare drums a4, roll
- G#6, B6: Piatti, single hits normal, slow
- A6: Tam-tam, single hit
- A#6: Tam-tam, roll
- C7: Triangle, single hit
- C#7: Triangle, roll
- D7: Tambourine, single hit
- D#7: Tambourine, roll
- E7: Suspended cymbal, single hit
- F7, G7: Snare drum, single hits
- F#7: Snare drum, roll
- G#7: Cymbal, roll
- A7–C8: Concert toms 1–4

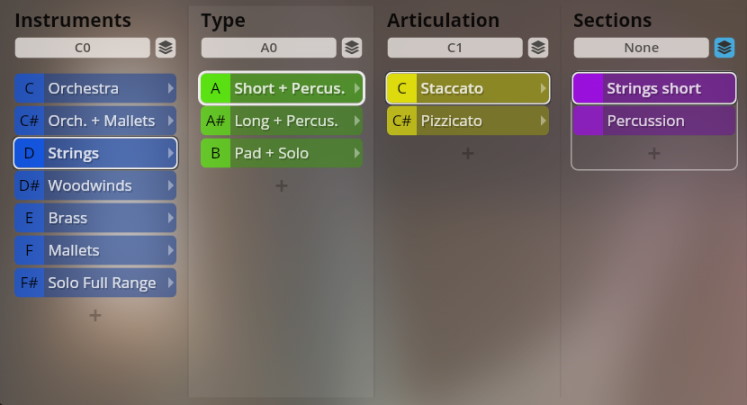

Short Notes
- Short notes: staccato, and staccato with pizzicato strings.
- Play Ranges: orchestra C2–C6; percussion D6–C8.
- Articulation keyswitches: C1–C#1.

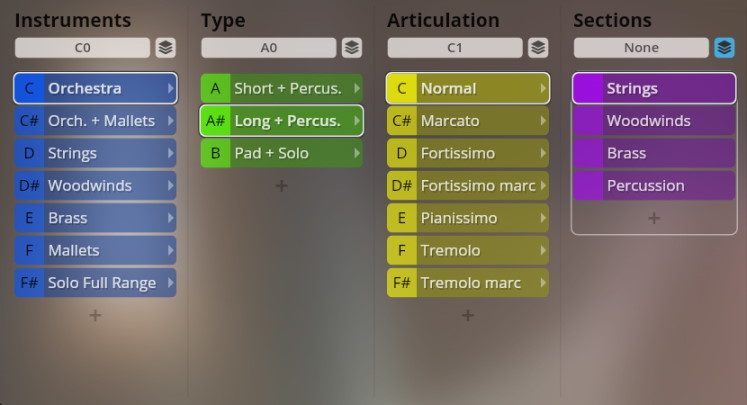

Long Notes
- Sustained notes: normal, fortissimo, pianissimo, and tremolo. All except pianissimo also feature versions with marcato attack (see below).
- Play Ranges: orchestra C2–C6; percussion D6–C8.
- Articulation keyswitches: C1–F#1.

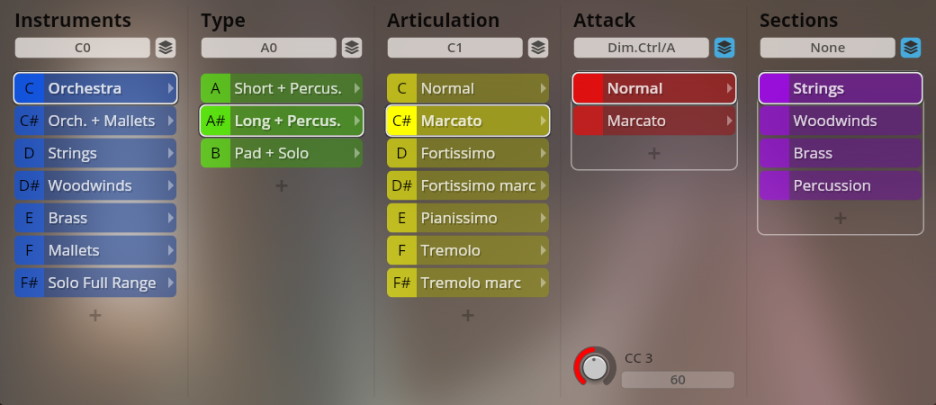

For the sustained notes’ marcato versions, you can add marcato attacks with the help of Dim.Ctrl/A (CC3).

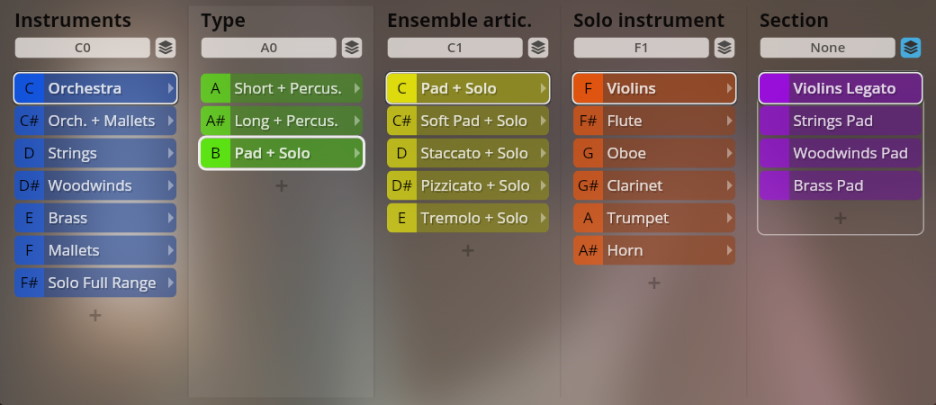

Pad + Solo
The Pad + Solo section offers various ensemble articulations for accompaniment together with a dedicated solo instrument.
- Play ranges: ensemble articulations C2–B4; solo violins, flute C5–C8; oboe C5–F#7; clarinet D5–F#8; trumpet F#5–C8; horn C5–F7.
- Keyswitches: ensemble articulations C1–E1; solo instruments F1–A#1.
These Presets are constructed in the same way as the full orchestra ones, but feature the individual sections of the orchestra. Accordingly, there are no pizzicato Articulations in the woodwinds and brass Presets.

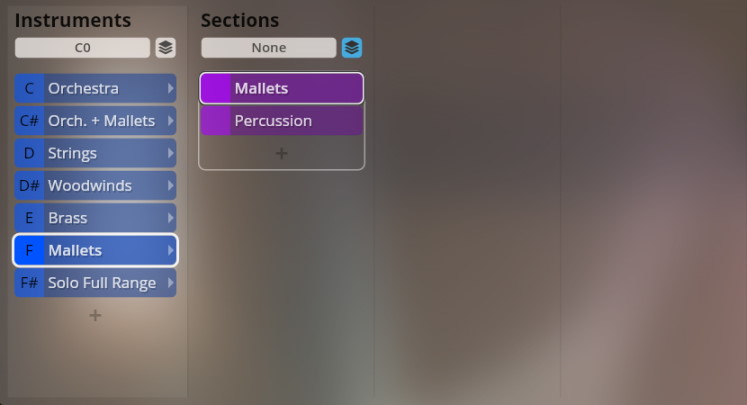

This contains the orchestra’s mallets and percussion sections.
- Play ranges: mallets C2–C6; percussion D6–C8.

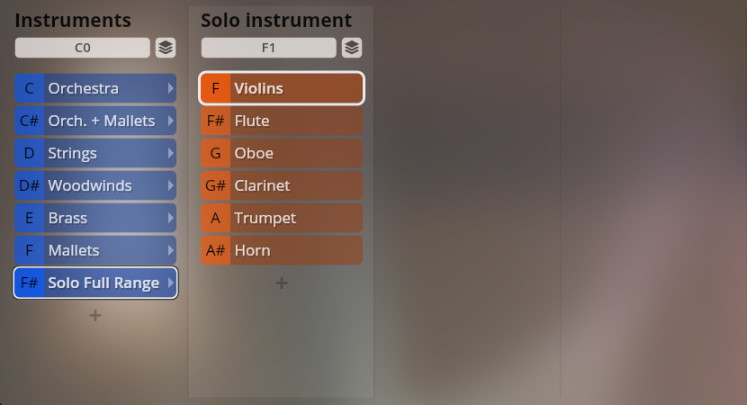

Here you can find legato Patches of the six available solo instruments, covering their full range.
- Play Ranges: violins G3–G7; flute C4–C7; oboe C4–F#6.; clarinet D3–F#6; trumpet F#3–C6; horn C2–F5.
- Instrument keyswitches: F1–A#1.
Users of the Smart Orchestra Expansion Pack get additional Presets which include the new instruments. Apart from that, they have the same structure as the original Smart Orchestra Preset.
The Expansion Pack provides several new solo instruments: Violas, Cellos, Harp, Celesta, Piccolo, English horn, Bass clarinet, Bassoon, and Timpani. In the ensembles, the bass instruments (Contrabass, Contrabassoon, Tubas) were transposed to the lower octave, and the high voices (1st violins and Piccolo) to the upper octave, resulting in an effective play range from C1 to C8.
- Preset keyswitches: C0–F#0.
- Type keyswitches: A0–B0 Short notes, Long notes, Pad + solo.
- Articulation keyswitches: starting at C1, according to Preset/Instrument
- Group selection for solo instruments: Dim.Ctrl/B (CC4) Strings+Celesta, Woodwinds, Brass
- Solo instrument keyswitches: Strings F1–A1: Violins, Violas XP, Cellos XP, Harp XP, Celesta XP Woodwinds F1–B1: Piccolo XP, Flute, Oboe, Clarinet, English horn XP, Bass clarinet XP, Bassoon XP Brass A1–A#1: Trumpet, Horn.

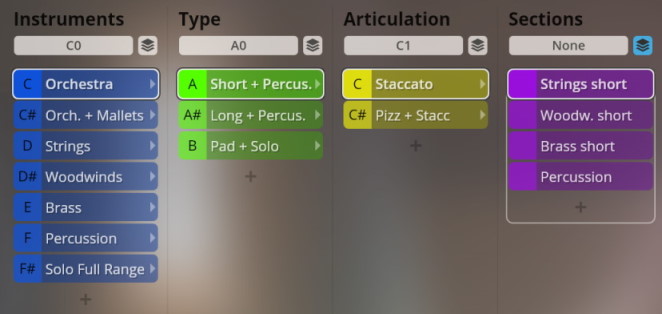

Short Notes
- Short notes: staccato, and staccato with pizzicato strings.
- Play Ranges: orchestra C2–C6; percussion D6–C8.
- Articulation keyswitches: C1–C#1.

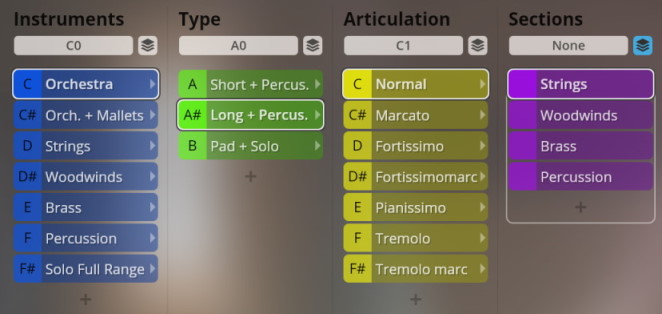

Long Notes
- Sustained notes: normal, fortissimo, pianissimo, and tremolo. All except pianissimo also feature versions with marcato attack (see below).
- Play Ranges: orchestra C2–C6; percussion D6–C8.
- Articulation keyswitches: C1–F#1.

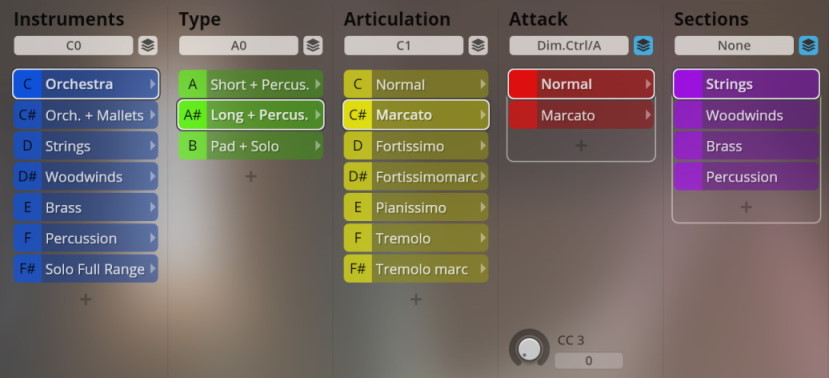

For the sustained notes’ marcato versions, you can add marcato attacks with the help of Dim.Ctrl/A (CC3).

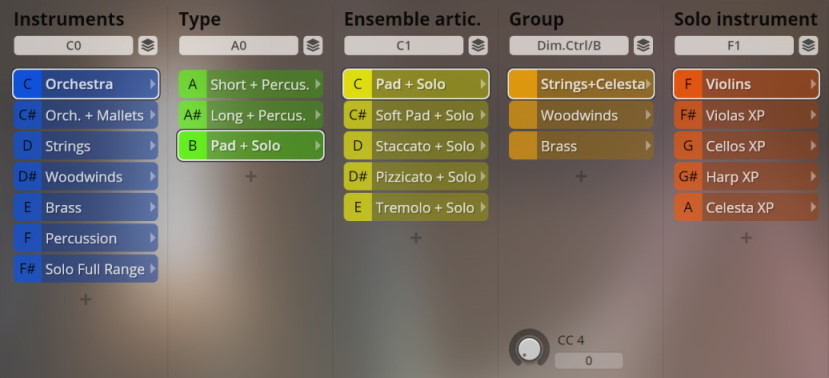

Pad + Solo
The Pad + Solo section offers various ensemble articulations for accompaniment together with a dedicated solo instrument.
- Play ranges: ensemble articulations C2–B4; solo instruments C5–C8 except oboe C5–F#7; clarinet D5–F#8; English horn E5–C8; trumpet F#5–C8; horn C5–F7.
- Keyswitches: ensemble articulations C1–E1; solo instruments F1–B1.
These Presets are constructed in the same way as the full orchestra ones, but feature the individual sections of the orchestra. Accordingly, there are no pizzicato Articulations in the woodwinds and brass Presets.

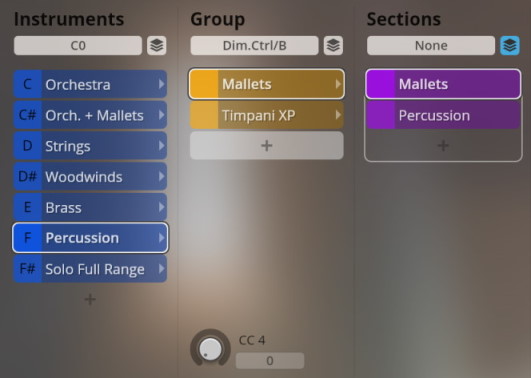

This contains the orchestra’s mallets/timpani and percussion sections.
- Play ranges: mallets C2–C6; timpani C2–B3 left hand, C4–C6 right hand; percussion D6–C8.

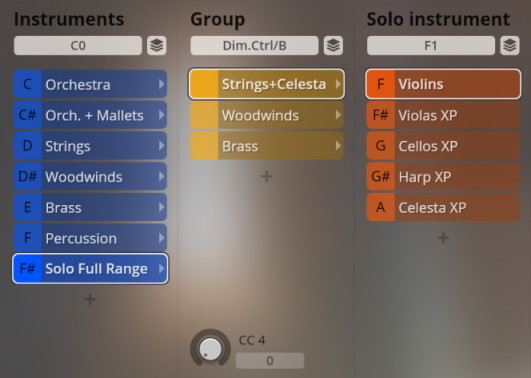

Here you can find legato Patches of the available solo instruments, covering their full range.
Play Ranges
"XP" marks instruments from the Smart Orchestra Expansion Pack.
Strings + Celesta
- Violins: G3–G7
- Violas XP: C3–E6
- Cellos XP: C2–A5
- Harp XP: C2–A7
- Celesta XP: C3–F7
Woodwinds
- Piccolo XP C5–C8
- Flute C4–C7
- Oboe C4–F#6
- Clarinet D3–F#6
- English horn XP E3–C6
- Bass clarinet XP C2–F#5
- Bassoon XP C2–D5
Brass
- Trumpet F#3–C6
- Horn C2–F5
Instrument keyswitches: F1–A#1
The Smart Orchestra’s FX Presets section is subdivided into four categories: Pads, Plucks, Leads, and Processed Percussion. With the exception of the percussion, these normally consist of two or more layered instruments with effects (e.g., dedicated EQ settings and attack/decay parameters) applied to them:
The orchestral FX Presets generally have a play range from C2 to C6.
01 Shimmering Promise
- Patches: Strings long Pad pp, Woodwinds long Pad, Brass long Pad pp
02 Sparkles & Bliss
- Patches: Strings long pp, Brass long, Mallets
03 Brooding Force
- Patches: Strings long, Woodwinds long pp, Brass long pp
04 Woodwind Memories
- Patches: Strings long Pad, Woodwinds long Pad, Brass long Pad
- Play range: C2–B4.
05 Evolving Mystery
- Patches: Strings long pp, Woodwinds long, Brass long

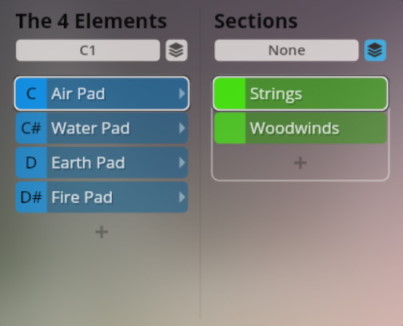

06 The four elements
- This comprises four different Presets corresponding with the four elements of old.
- Patches
- Air Pad: Strings long Pad, Woodwinds long Pad
- Water Pad: Strings long ff, Brass long
- Earth Pad: Brass long pp, Woodwinds long
- Fire Pad: Strings Trem, Woodwinds long ff
- Play range: Air Pad C2–B5, others C2–C6
- Keyswitches: C1–D#1.
07 Pluck-Pad
- Patches: Woodwinds short ff, Brass long ff, Strings Pizz and long ff, Mallets
08a Aftertouch beeswarm, 08b Modwheel beeswarm
- Patches: Strings long, Woodwinds long, Brass short, Mallets
The volume of Strings and Woodwinds can be controlled via aftertouch or modwheel, respectively.
- Patches: Strings long, Woodwinds long, Brass short, Mallets
09 Dizzy Pads
- The layout of the Dizzy Pads Preset is the same as that of Smart Orchestra, with various effects and EQ settings applied to the individual instruments.
10 Ice Palace
- Patches: Strings long pp, Woodwinds long, Brass long pp
01 Needles in the sky
- Patches: Woodwinds short ff, Strings short normal and ff, Strings pizzicato, Mallets
02 Rise of the mercenaries
- Patches: Woodwinds short ff, Strings short normal and ff, Mallets
03 Ping me
- Patches: Woodwinds short ff, Strings short normal and ff, Strings pizzicato, Mallets
04 Breathe and wait
- Patches: Woodwinds short ff, Strings short normal and ff, Strings pizzicato, Mallets
05 Gentle thoughts
- Patches: Woodwinds short ff, Strings short normal and ff, Strings pizzicato, Mallets
06 Blades & Spades MODFilter
- Patches: Woodwinds short, Brass short ff.
Use the modwheel (CC1) to change the filter effect.
- Patches: Woodwinds short, Brass short ff.
07 Jungle sign
- Patches: Woodwinds long ff (low notes with shortened hold phase), Mallets (two slots with different AHDSR curves)
- Play range: C2–B4
08 Strumming along MODFilter
- Patches: Woodwinds short, Strings short normal and ff, Strings pizzicato, Mallets.
Use the modwheel (CC1) to change the filter effect.
- Patches: Woodwinds short, Strings short normal and ff, Strings pizzicato, Mallets.
These Presets for lead voices mostly are combinations of solo instruments.
01 Hybrid Fluboe
- Patches: Flute Legato NR, Oboe Legato NR
- Play range: C4–C7
02 Digital Hero
- Patches: Oboe Legato NR, Horn Legato NR
- Play range: C3–F6
03 Wake up call
- Patches: Trumpet Legato NR, Violins Legato NR
- Play range: G3–C7
04 Happy but weird
- Patches: Oboe Legato NR, Flute Legato NR, Horn Legato NR
- Play range: C3–F6
05 Soaring
- Patches: Violin Legato NR, Clarinet Legato NR
- Play range: F3–F7
06 Sandstorm
- Patches: Woodwinds long ff and short, Strings long, Brass long ff, Horn Legato NR
- Play range: C2–B4
The three Presets of this section have the same layout and feature different acoustic aspects of the percussion section.
01 Trailer Percussion, 02 Punchy Percussion, 03 Doomed Percussion
Play range: C6–C8
Mapping:
- D6, E6 Bass drum, single hits (alternating)
- D#6 Bass drum, roll
- F6, G6 Snare drums a4, single hits
- F#6 Snare drums a4, roll
- G#6, B6 Piatti, single hits normal, slow
- A6 Tam-tam, single hit
- A#6 Tam-tam, roll
- C7 Triangle, single hit
- C#7 Triangle, roll
- D7 Tambourine, single hit
- D#7 Tambourine, roll
- E7 Suspended cymbal, single hit
- F7, G7 Snare drum, single hits
- F#7 Snare drum, roll
- G#7 Cymbal, roll
- A7–C8 Concert toms 1–4
The library update from January, 2019 furnishes the original Smart Orchestra with an additional FX Presets section. Apart from the existing four categories, this new section also features the additional categories Pulses and Basses.
01 Down Memory Lane
- Patches: Strings Long Pad (normal and octave up), Flute Legato
- Play Range: C1–B7
- CC1: Filter
02 Gentle Strings
- Patches: Strings Long Pad pp, Violins Legato
- Play Range: C2–C8
- CC1: Filter
03 Sins
- Patches: Strings Trem Pad, Woodwinds Long Pad, Brass Long Pad
- Play Range: C2–B4
- CC1: Return 2 volume
04 Stutter Pad
- Patches: Strings Long pp, Woodwinds Long pp, Brass Long pp
- Play Range: C2–C6
- CC1: Send 2
01 Down to Earth
- Patches: Brass Long ff
- Play Range: C2–C6
- CC1: Send 1
02 Finity
- Patches: Mallets, Strings Short, Woodwinds Short
- Play Range: C2– C6
- CC1: Return 2 volume
03 Bold
- Patches: Strings Short ff, Strings pizz, Woodwinds Short ff, Brass Short ff (normal and octave up)
- Play Range: C2–C4
- CC1: Send 1
04 Cluster
- Patches: Strings Short ff, Woodwinds Short ff, Brass Short ff Play Range: C2–C6
- CC1: Send 1
05 Pluckiat
- Patches: Strings Short ff, Strings pizz, Brass Short ff
- Play Range: C2–C6
- CC1: Return 2 volume
06 Ringing Pizz
- Patches: Strings pizz (different spatial instances)
- Play Range: C2–C6
- CC1: Filter
07 Phone Blip
- Patches: Mallets
- Play Range: C1–C7
- CC1: Filter
08 Glimmer Mallets
- Patches: Mallets
- Play Range: F1–F6
- CC1: Filter
01 Solista
- Patches: Violins Legato NR, Oboe Legato NR, Trumpet Legato NR
- Play Range: G3–G6
- CC1: Return 2 volume
02 Solista Wood
- Patches: Clarinet Legato NR, Flute Legato NR, Oboe Legato NR
- Play Range: C4–C7
- CC1: Return 2 volume
03 Wooden
- Patches: Strings trem, Woodwinds Long, Brass Long
- Play Range: C2–C6
- CC1: Return 2 volume
04 Bellows
- Patches: Clarinet Legato NR, Trumpet Legato NR
- Play Range: C3–F#6
- CC1: Send 1
05 Balcony Horns
- Patches: Horn Legato NR (normal and octave up)
- Play Range: C3–F6
- CC1: Filter
06 Bright Fanfare
- Patches: Brass Short, Brass Long, Horn Legato NR, Trumpet Legato NR
- Play Range: C3–F6
- CC1: Humanize/Tuning
01 Crushed Drums Vol.2
- Patches: Percussion (bass drum and snare drum)
- Play Range: C2/D2 fast, C3/D3 medium, C4/D4 slow delay
- CC1: Return 1 volume
02 Processed Percussion Vol.2
- Patches: Percussion (taiko, snare drum 1/2, cymbals &c.)
- Play Range: C6–F#7
- CC1: Filter
01 Mysteries
- Patches: Strings Short Pad, Strings Long Pad, Mallets Pad
- Play Range: C2–B4
- CC1: Return 2 volume
02 Space Violin
- Patches: Violins Legato NR
- Play Range: G3–G7
- CC1: Send 1
03 Tremolo Waves
- Patches: Strings Long Pad, Strings Trem, Strings Trem Pad
- Play Range: C2–B4
- CC1: Filter value
04 Piper
- Patches: Strings Long ff, Woodwinds Short ff, Woodwinds Long pp
- Play Range: C2–C6
- CC1: Return 2 volume
05 Rise and Fall
- Patches: Strings Long, Strings Pizz, Strings Trem
- Play Range: C2–C6
- CC1: Velocity XF
06 Dark Brass Swells
- Patches: Brass Long ff, Brass Long
- Play Range: C2–C6
- CC1: Send 1
- 01 Galvanizing Subbass
- Patches: Strings Pizz Pad
- Play Range: C1–B2
- CC1: Send 1
- 02 Menacing Bells
- Patches: Mallets
- Play Range: C2–C3
- CC1: Filter value
