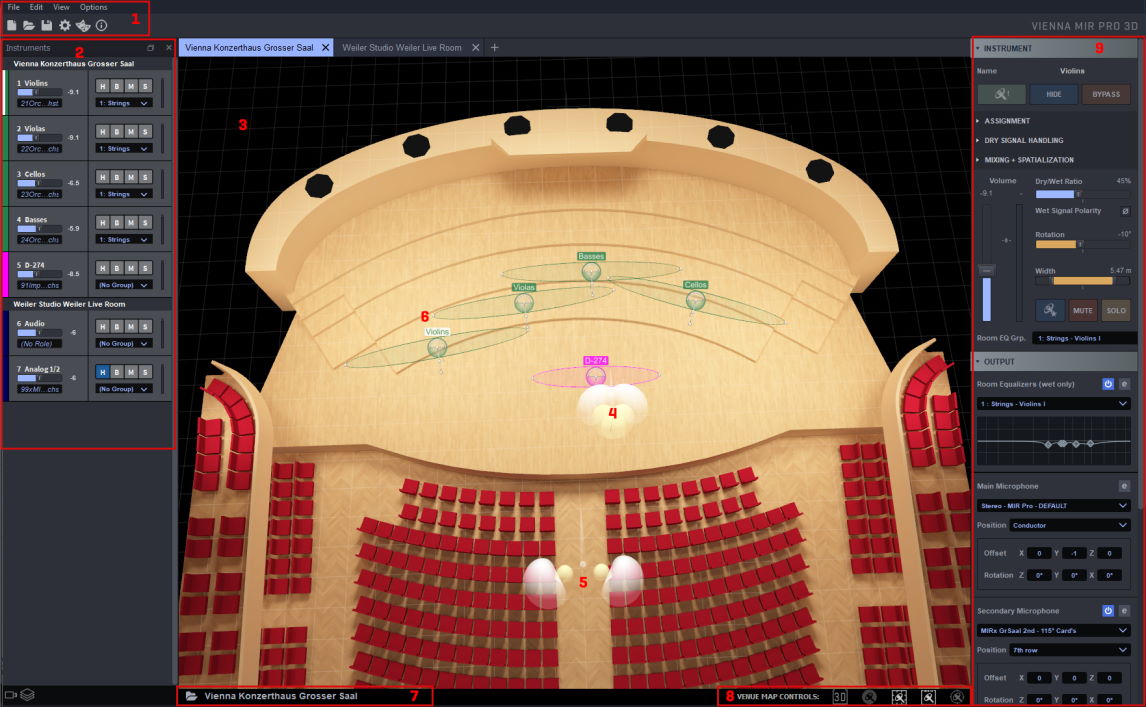

- Main menu / command bar
- Instrument/channel list (detachable)
- Venue view
- Main Microphone
- Secondary Microphone
- Instrument control Icon
- Venue selection
- Venue Map controls: 3D view control hints, HotSpots, 1x1 m grid, titles, follow (see Keyboard shortcuts Button icons and their meanings)
- Instrument, Output, Venue controls
The last item represents the signal flow within MIR Pro 3D from top to bottom:
- INSTRUMENT PANEL
- Naming and Global Handling (always visible)
- Assignment
- Dry Signal Handling
- Mixing & Spatialization
- Volume & Control (always visible)
- OUTPUT PANEL
- with Main and Secondary Microphone settings, plus Room EQ control
- VENUE PANEL
- for Venue-wide dry/wet handling, reverb time scaling and RoomTone volume
