Matrix Tab

The Matrix Tab finally introduces micro-tuning! Choose from many 12-step scales and add your own 12-step scales, if you like. Additionally, a 3-band EQ is available for each matrix! As all functions are only affecting the selected matrix, you can switch between different tunings by switching between Matrices!

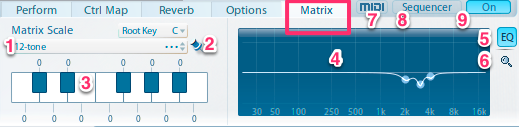

  1. Scale menu: Click to select a 12-step Scala tuning to load. Supplied factory Scala files are installed to the following locations:
  • macOS: Library\Application Support\VSL\Vienna Instruments Pro\Scales
  • Win: C:\ProgramData\VSL\Vienna Instruments Pro\Scales
  • You may add or edit 12-step Scala files in this location.
  1. Pin Scales: Toggling this button will apply the selected scale to all matrices.

  2. Scale Editor:

  • Shows current tuning shifts (in cents) of an octave.
  • Click on a value and drag to adjust
  • Adjusted scales cannot be saved separately, but will be saved with a matrix/preset.
  1. Matrix Equalizer:
  • Three bands of equalization, using the Vienna Suite algorithms.
  • Click-drag a point to set frequency/gain.
  • Control-drag a point to change Q.
  • Double-click a point to reset to default gain.
  • Use mouse-wheel on a selected point to change its Q.
  1. EQ On/Off button: Enables the current EQ setting for current matrix. It’s On and reset by default.

  2. Zoom button: Pops up a larger version of equalizer.

  3. MIDI Dump (also below Matrix List in BASIC View): Click MIDI DUMP and the current Matrix Selection, Cell Position, A/B Position, Sequencer Root Key and Scale Type of the selected Vienna Instruments PRO Interface will be dumped to the record-enabled track in your sequencer as MIDI information.

  4. Sequencer: Switches to Sequencer View

  5. On/Off: Enables/Disables Sequencer
