Matrix Mixer Pro

The Matrix Mixer Pro features a gain, delay and phase network which allows you to solve a variety of problems, for example:

  • Feeding Left/Right channel into LFE channel

  • Phase adjustment of a single channel in a surround setup

  • Delay individual channels in a surround setup

  • Solving phase problems of individual channels

Walkthrough Video

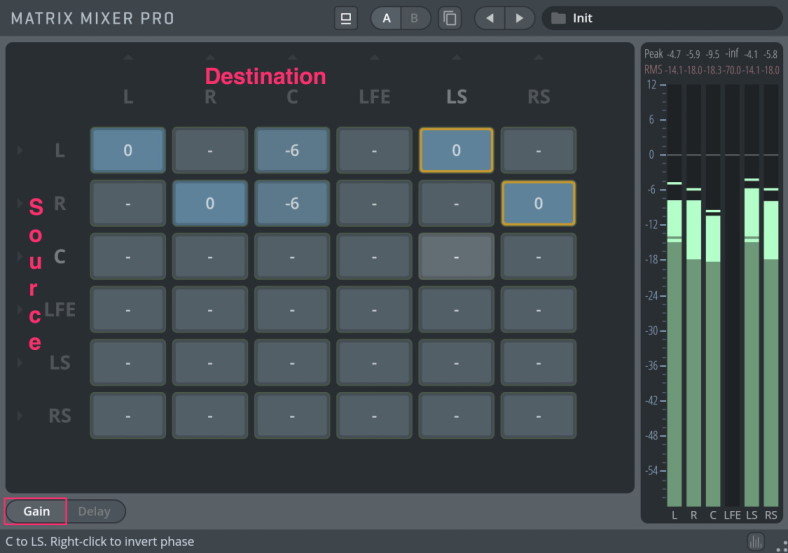

In Gain Mode, the matrix displays gain settings for each source - destination channel feed.

  • Gain adjustment: Adjust gain for each feed by click-dragging on the node. Double-click on a node to enter a value from the keyboard. Values: infinite to 12 dB.

  • Phase reverse: By right-clicking on a node, this node will be phase reversed. A node with active phase-reversal is marked with an orange ring. You may for instance send a phase-reversed feed of the left channel to the right surround channel, and a phase-reversed feed from the right channel to the left surround channel, to create certain effects, or "pseudo-surround".

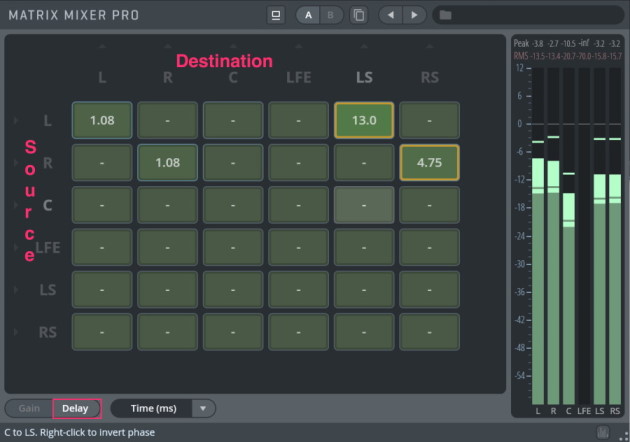

In Delay Mode, each node displays a delay for the individual feed. The delay mode allows you to set an individual delay for each matrix node, enabling very complex mixing.

  • Delay adjustment: Adjust the delay time for each feed by click-dragging on the node. Double-click on a node to enter a value from the keyboard.

  • Delay mode: Choose to display delay values by Time (ms), Distance (m) or Samples.
    Having applied delay settings to a node and switching back to the Gain mode, will yield a green frame on the affected node, signifying an active delay value.

  • Phase reverse: Like in Gain Mode, by right-clicking on a node, this node will be phase reversed. A node with active phase-reversal is marked with an orange ring.
