Remote Control App for Tablets

• NEW Vienna Instruments latest version (VI)
• Vienna Instruments PRO latest version (VI PRO)
• Apple iPad:iOS 5.1or later
• Other tablets: Android 4.0 or later with Chrome or Firefox browser
• 10 inch tablets are recommended

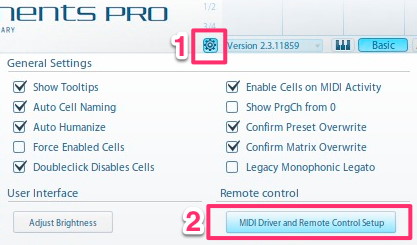

1. Launch Vienna Instruments (PRO). Open Settings.

2. Under Remote control, choose MIDI Driver and Remote Control Setup.

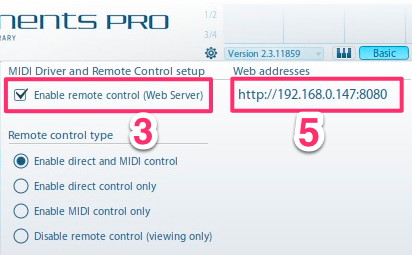

3. Activate the checkbox Enable remote control (Web Server). Should your OS prompt for firewall permissions, click "Allow".

If you are using an iPad, please open the Safari browser. If you are using an Android 4.x tablet, please install the Chrome Web Browser from the Google Play store, unless it's already installed. NEW. Synchronization Options Synchronize Control Map: When enabled, all changes you make in the Controller Mappings tab of one instance will be applied to all VI/VI PRO instances running on your system. Also syncs the sliders in the Real Time Controller Area in Basic View.

5. On the settings panel you will see one or several addresses displayed under Web addresses.

Type this address into your web browser and click open (you might have to include https:// at the beginning of the URL).

If there are several web addresses and you do not know which one is responsible for the network to which your tablet WIFI is connected, please try all available addresses until finding the one that works.

If none of the addresses work, please ensure that the audio workstation computer and your tablet share at least one common network.

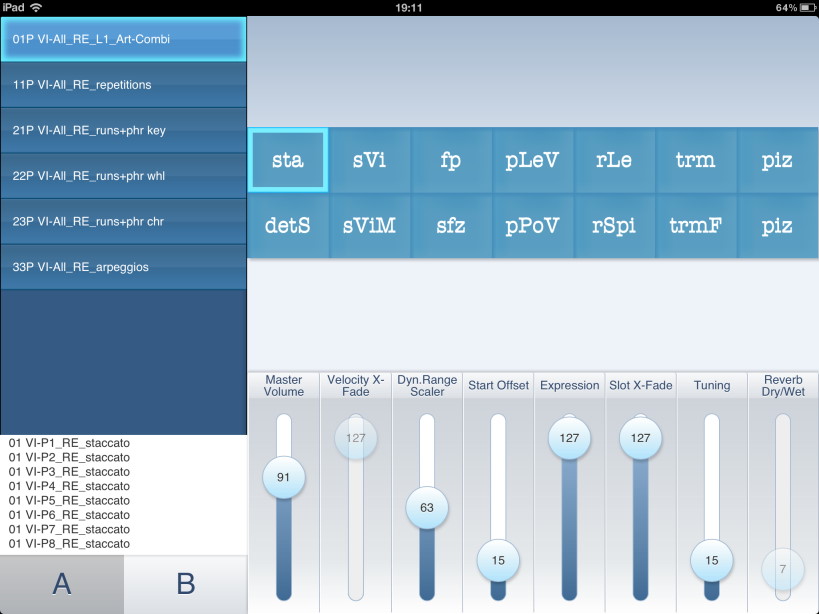

7. Your browser now shows the control surface of the VI PRO Remote App. If the screen does not show correctly upon the initial load (which can happen on slower Android tablets), press the browser refresh button.

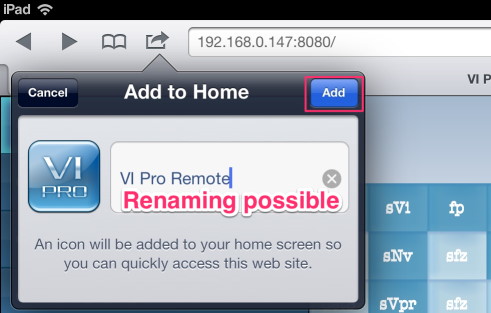

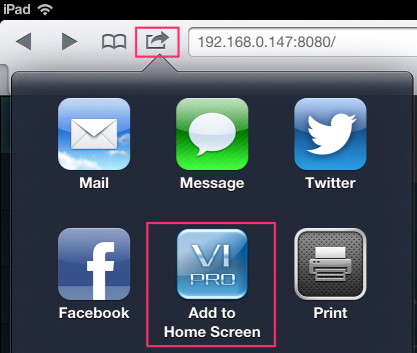

8. Click the Add Bookmark button on your browser and choose Add to Home Screen.

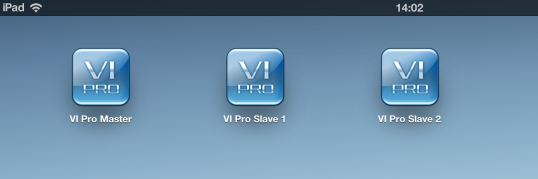

9. A new icon will appear on your home screen, which can be used to launch the VI/PRO Remote App and will remain valid as long as the network configuration of the target machine does not change.

Static IP Addresses make sense in such a setup!

1. Repeat the installation procedure for all computers you want to be remotely controlled, creating separate icons on the home screen, one for each computer.

2. If you are running several applications hosting Vienna Instruments/Pro on a single computer (e.g., Cubase and Vienna Ensemble PRO 32/64 bit simultaneously), each host application will have a different web address.

For Vienna Instruments users: Don’t let the VI PRO icon in this documentation confuse you, the app works for Vienna Instruments just the same.

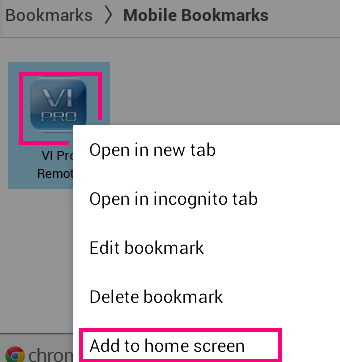

1. Click the Settings button in the top right corner of Chrome browser and from the popup menu choose the star icon to add a bookmark:

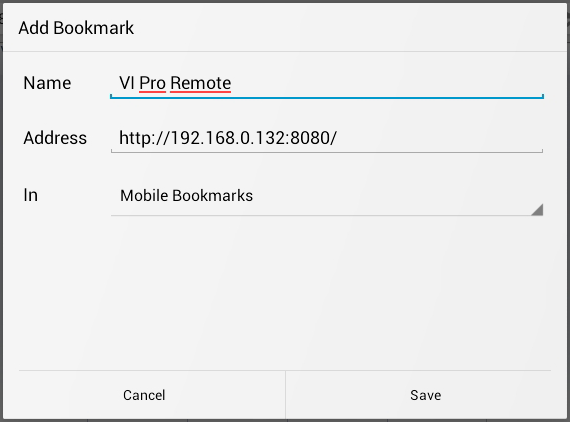

8. Rename the entry if you like and press Save.

Static IP Addresses make sense in such a setup!

1. Please be sure to always open the bookmark with the Chrome browser, as Android 4.0 standard browser (depending on the tablet performance) might be too slow to handle the application properly. We also tested the Firefox browser on Android.

2. Repeat the installation procedure for all computers you want to be remotely controlled, creating separate bookmarks, one for each computer.

3. If you are running several applications hosting Vienna Instruments/Pro on a single computer (e.g., Cubase and Vienna Ensemble PRO 32/64 bit simultaneously), each host application will have a different web address.

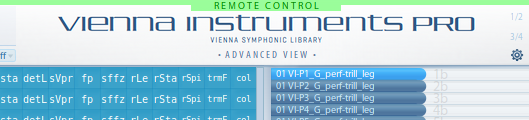

Vienna Instruments/PRO now comes with a dedicated MIDI driver. This allows you to RECORD all matrix selections, cell selections, A/B selections and fader movements on the VI/PRO Remote App in your sequencer. The controlled Vienna Instruments/PRO instance is clearly highlighted in green.

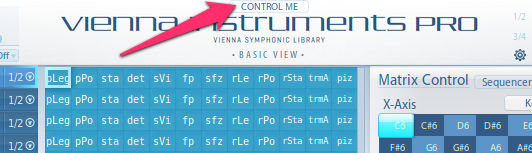

To remote control another instance, click Control Me.

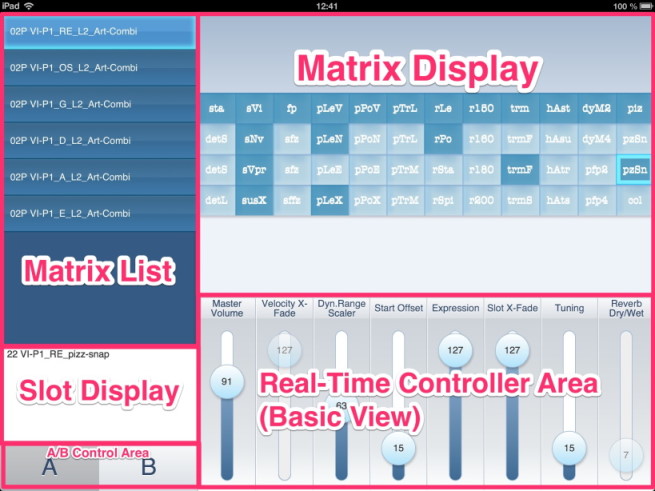

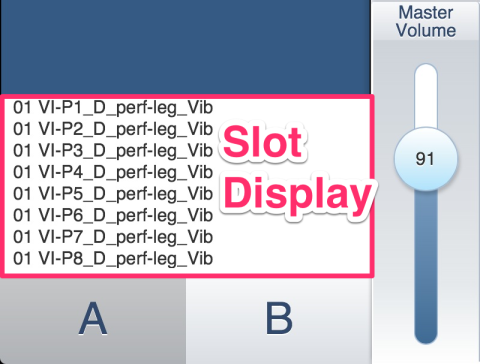

The articulations loaded into the slot rack of the selected cell are displayed in the Slot Display above the A/B Control Area.

To switch between A/B articulations (where available), simply tap A or B.

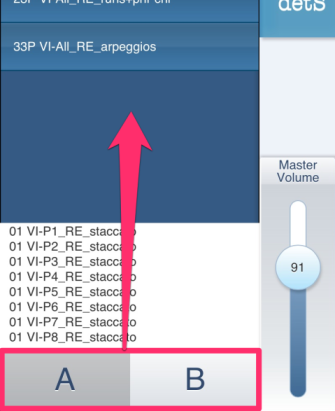

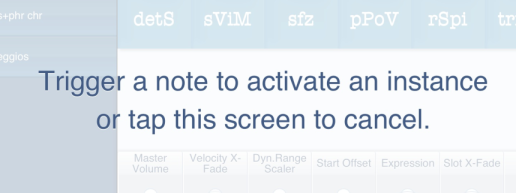

To enable Automatic Activation Mode(learn-input): touch the A/B Control Area and drag upwards away from it without releasing the finger until the message screen appears. The first Vienna Instruments/Pro instance receiving a MIDI note will be remote-controlled in your host.

All actions in your VI PRO Remote App will be recorded on your selected MIDI Channel (see page 10 for details).

Make sure that this record-enabled MIDI channel corresponds with the remote controlled Vienna Instruments PRO instance.

You cans witch between matrices and cells by tapping any matrix or cell, and of course you can also use all available sliders. The sliders you see correspond to the sliders you have set in the BASIC VIEW of the remote controlled Vienna Instruments/PRO instance.

• Tap the slider with one finger to enable

• Tap the slider with two fingers at the same time to disable

• Alternatively touch the slider and drag far away from it horizontally without releasing the finger to enable/disable the slider.This gesture might be more convenient than the two-finger tap.

Vienna Instruments/PRO now has an additional feature for dumping the current state of the instrument to a virtual midi driver.

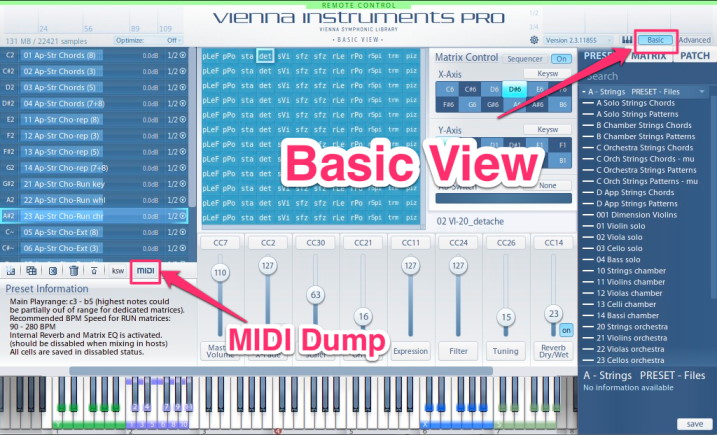

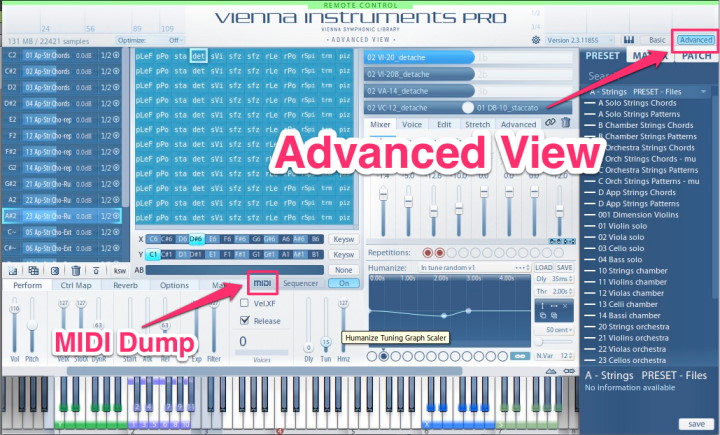

Click MIDI DUMP when the selected track in your DAW is record-enabled, and the current Matrix Selection, Cell Position, A/B Position, Sequencer Root Key and Scale Type of the selected Vienna Instruments/PRO Interface will be dumped to your sequencer as MIDI information.

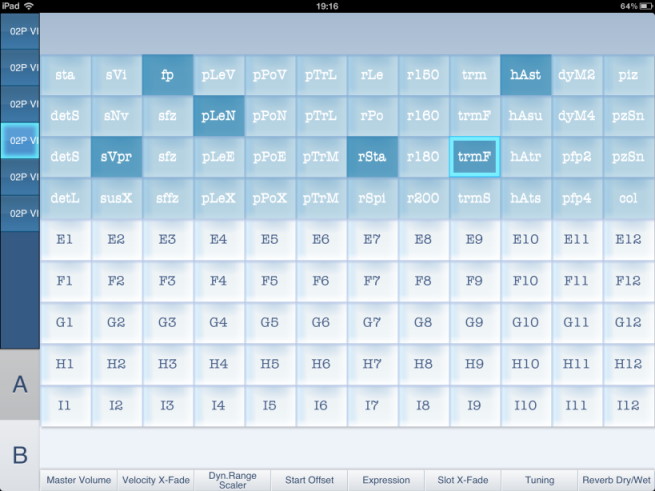

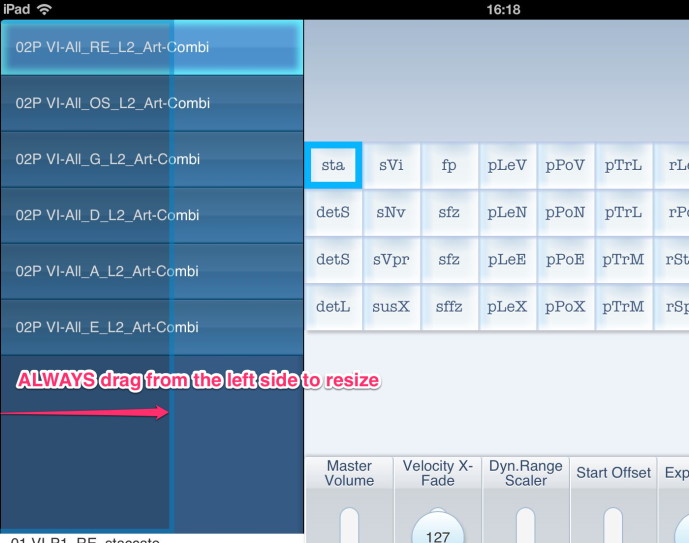

Resize the Matrix List section of the VI PRO Remote App by dragging your finger from left to the right (increase/decrease size).

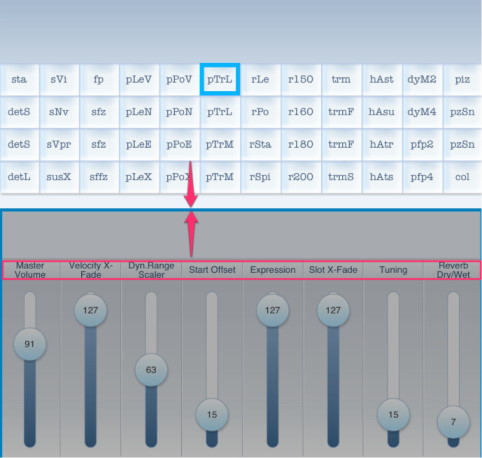

Resize Matrix Display and Real Time Control Area by dragging the title bar of the Real Time Controller Area.

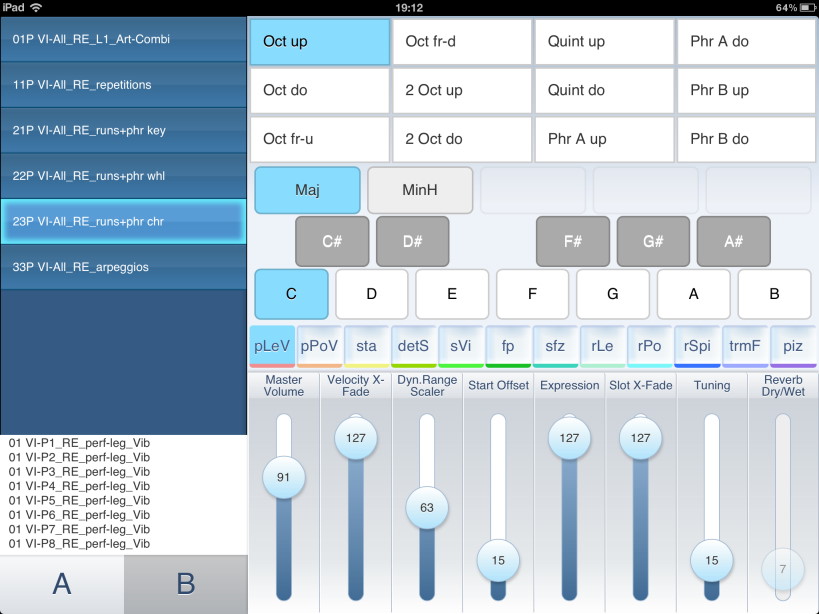

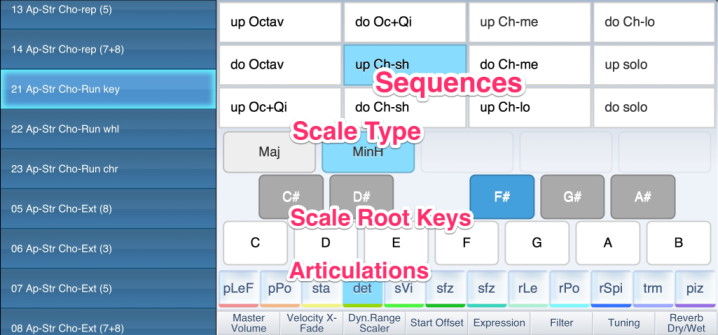

If the Vienna Instruments PRO Auto Playback and Pattern Sequencer is enabled in a matrix, the Sequencer View will appear on the VI PRO Remote App.

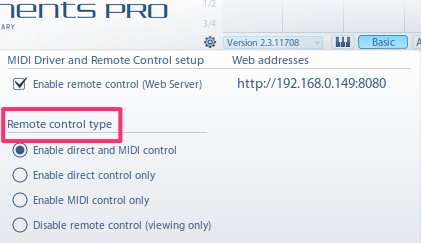

VI Pro Remote App provides 4 different modes of operation:

Enable direct and MIDI control

The VI/Remote App will control an instrument using both MIDI and direct control. This is the most versatile of the modes, allowing control even if MIDI is not routed to the active instrument.

Enable direct control only

In this mode, MIDI is deactivated. Only direct control of the instrument is performed (good for, e.g., live performances). Please note that you will not be able to record any of the controller data when using this mode.

Enable MIDI control only

When this mode is used, no direct control will change the instrument. It is a good way of verifying that the instrument has MIDI controllers assigned, and that all keyswitches and controller data will be recorded by the sequencer.

Disable remote control (viewing only)

This mode turns off all remote control for the instrument, while still allowing the VI /Pro Remote App to display the current status of the instrument.

Please make sure that this port is routed to there mote controlled Vienna Instruments/PRO instance in your sequencer or DAW (and not to any other instances or instruments), otherwise control data will be interpreted by other instruments as regular MIDI events. This could change the parameters of other virtual instruments unintentionally. If multiple Vienna Instruments/PRO tracks are record-enabled, you can remote control multiple Vienna Instruments/PRO instances from your VI Remote App.

Ideally, the matrices should be set up in a similar way.

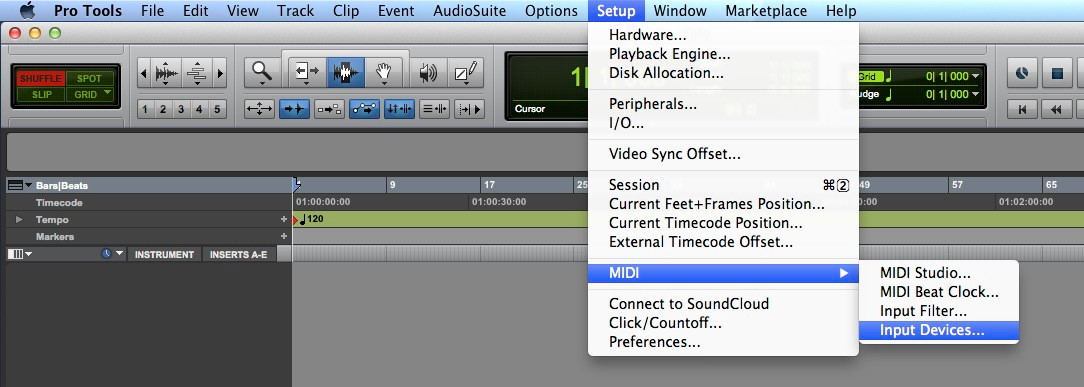

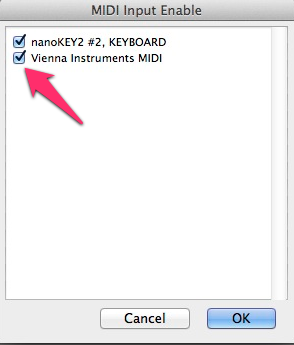

In Pro Tools, you need to activate the installed virtual Vienna Instruments MIDI driverin Setup => MIDI => Input Devices:
