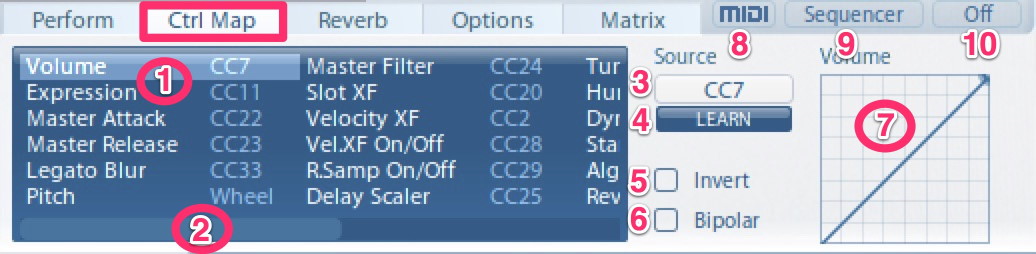

Controller Map Tab

The Controller List shows all parameters automatable by MIDI, and any current controller assignments. All parameters are available in the Parameter Assign List of the Real-time Controllers in the Basic View.

  1. Controller List: Click (or click and drag) to select a controller and display its settings.
    Default Settings:
  • Volume: CC7
  • Expression: CC11
  • Master Attack: CC22
  • Master Release: CC23
  • Legato Blur: CC33
  • Pitch: Wheel
  • Master Filter: CC24
  • Slot XF: CC20
  • Velocity XF: CC2
  • Velocity XF On/Off: CC28
  • RSamp On/Off: CC29
  • Delay Scaler: CC25
  • Tuning Scaler: CC26
  • Humanize: CC27
  • Dynamics Scaler: CC30
  • Start Scaler: CC21
  • Reverb Wet: CC14
  • Reverb On/Off: CC15
  1. Scroll Bar: Click-drag left/right to move through the controller list.

  2. Source Menu: Click to select the source controller for the selected parameter.

  3. Learn: Click to activate MIDI learn for the selected parameter.

  4. Invert: Click to enable an inverse transfer curve.

  5. Bipolar: Click to enable a bipolar curve.

  6. Controller Curve: Click and drag to change the controller curve function.

  7. MIDI Dump (also below Matrix List in BASIC View): Click MIDI DUMP and the current Matrix Selection, Cell Position, A/B Position, Sequencer Root Key and Scale Type of the selected Vienna Instruments PRO Interface will be dumped to the record-enabled track in your sequencer as MIDI information.

  8. Sequencer: Switches to Sequencer View

  9. On/Off: Enables/Disables Sequencer
